Enabling Wi-Fi Network Connection (iT100)

iT100 Firmware version 1.03.07 or higher is required to be able to configure Wi-Fi connections.

The following steps will need to be taken to attach a Wi-Fi enabled iT100 to a wireless network.

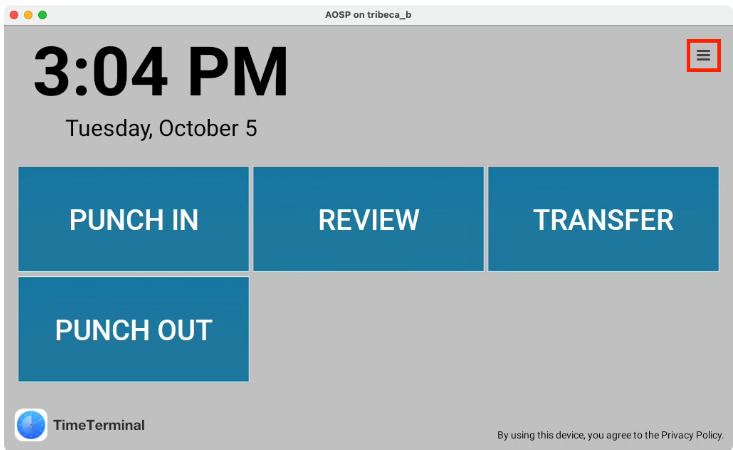

Start by clicking on the Menu button in the upper right corner.

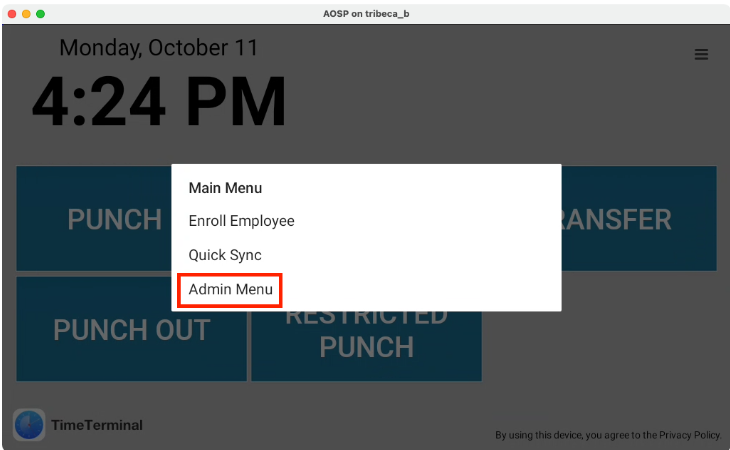

From the Main Menu dialog that displays, select Admin Menu.

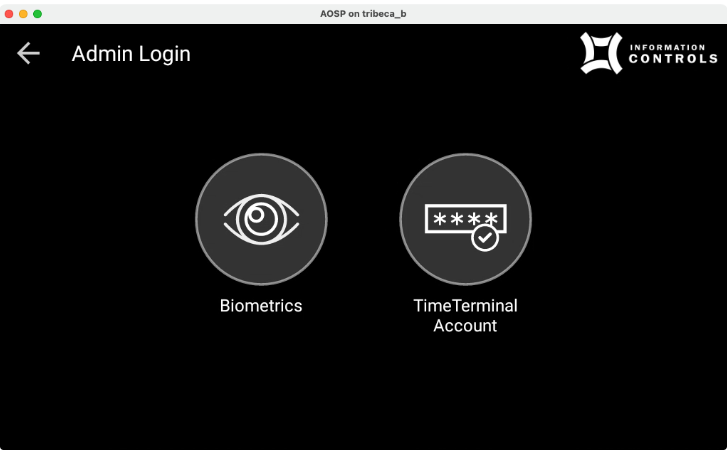

You will then be prompted to select how to authenticate yourself as an administrator.

• Select Biometrics if you have been enrolled in the clock with your Supervisor ID/Badge

• Select Time Terminal Account if you have not enrolled any supervisors or you do not have a Supervisor ID/Badge

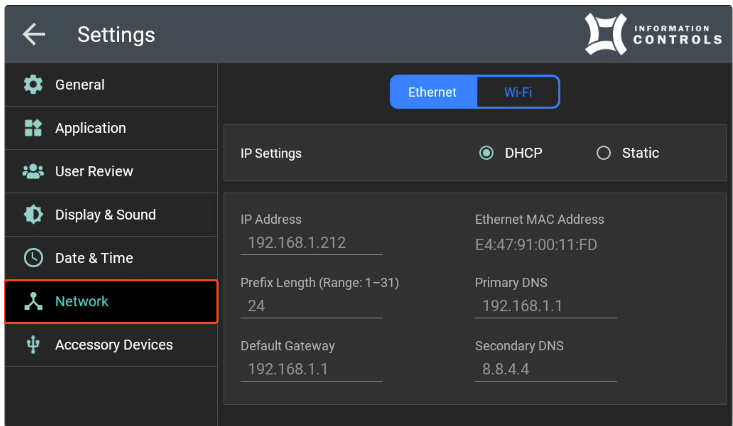

Tap on Network in the Settings Menu.

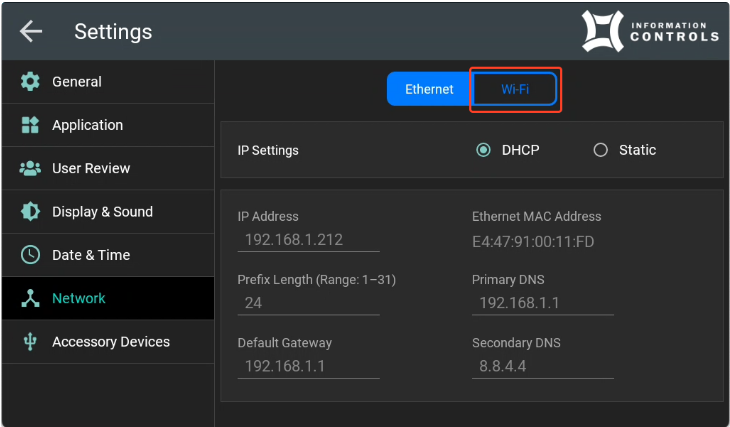

Tap on the Wi-Fi connection option at the top.



The connection type options will not be available if your device is below Firmware Version 1.03.07

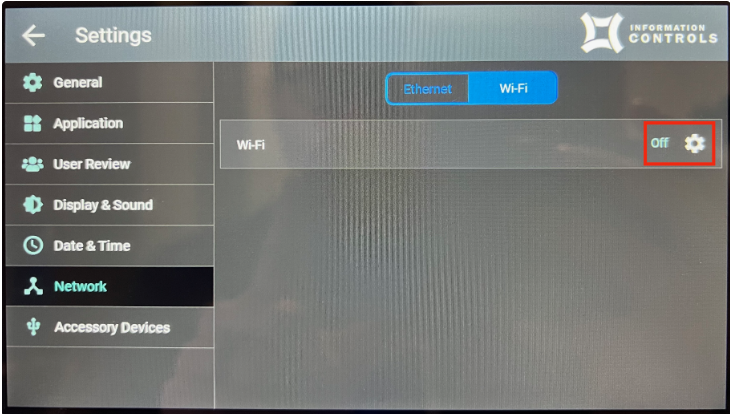

Tap on Off (gear icon) to open the Wi-Fi configuration screen.

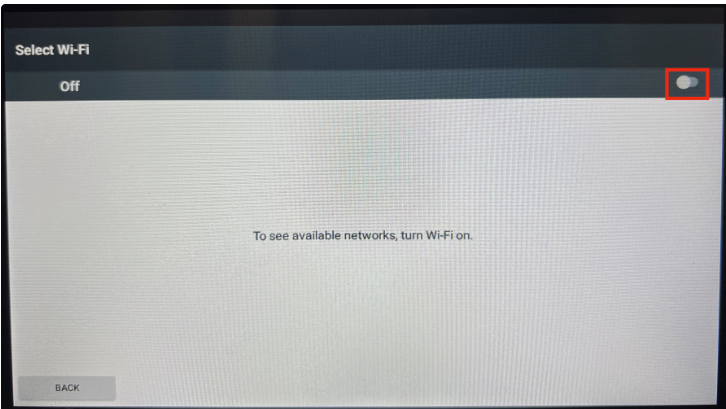

Toggle the Wi-Fi connection on via the Toggle switch in the top right corner.

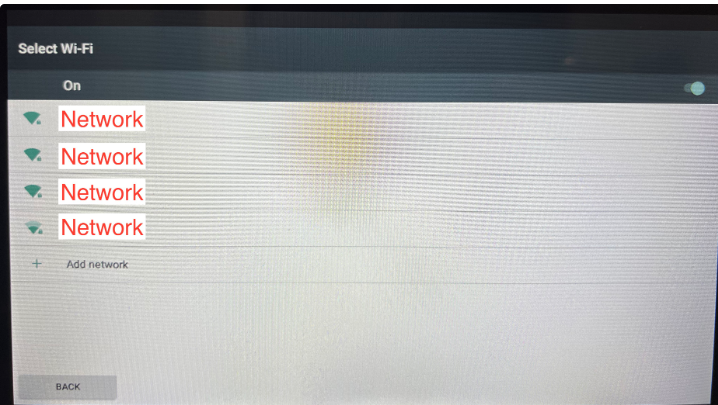

Select an available network from the list by tapping on it.



Enter the password for the selected network and then tap Connect when ready to connect.



Connect button will be disabled until a password has been entered

You should be returned to the network list and your chosen network should show as being connected. If there was an error during connection, you should see that as well.
